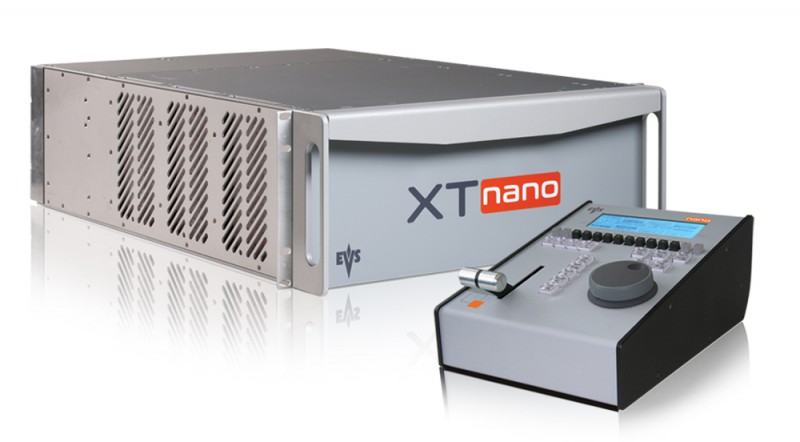

XTnano

Contact Us: 04-37831601
Catalog : Broadcasting > EVS
Views : 1302



VIDEO SYSTEM

- XTnano Server available as HD/SD

- 4 or 6 video channels (HD/SD)

- Optional Full 3D support (Dual link), max. 4 channels

- HD-SDI: SMPTE 292M, 10-bit; 1080i 50/59.94Hz; 720p 50/59.94Hz

- Pass-through of SMPTE 334M ancillary data

- Dual-link HD SDI: SMPTE 372M; Full 3D 1080i 50/59.94Hz & 720p 50/59.94Hz

- SDI: SMPTE 259M, ITU-R601, 10-bit; 625i 50Hz; 525i 59.94Hz

- Full frame synchronizer on each input

- 1 monitoring output with switchable super-imposed timecode and channel status per video channel: 1 x HD-SDI or SDI (software switchable)

MUlTIVIEWER

- Optional; 4 or 6 channel Multiviewer with 1x HD SDI, 1x SD SDI, 1x analog (HD YUV / HD RGBHV / SD Y/C & composite, software switchable)





DISK STORAGE

- 30h @ 100 Mbps

- 60h @ 50 Mbps

GENLOCK

- Tri-level Sync and analog Black & Burst

- 2 BnC, 75 Ω with loop-through

TIMECODE

- lTC: SMPTE12M; 1 input + 1 output on XlR (110 Ω balanced)

- HD-SDI: RP188 (HanC VITC1, HanC VITC2, HanC lTC)

- SDI: SMPTE 266M (VITC in VBI)

NETWORKING

- 2 x Gigabit Ethernet on RJ45 (import/export of audio/video files) – Jumbo Frames 9000 bytes

CONTROLS

- 4 x RS422; 12 x GPI (4 in, 4 out, 4 configurable)

- 1 or 2 nano controllers for Sportlight mode (up to 6 channels)

- Harris VDCP, Odetics, Sony BVw75, Thomson XtenDD35 (up to 4 channels)

- Ethernet on RJ45 (maintenance, SnMP, connection with EVS Xtract archive application)





SPORTlIGHT MODE

- Permanent loop recording, play while recording, instant replay from up to 4 sources, clip creation, instant cue up, fast jogging function with smooth video display, back-to-back or synchronized replays, delay mode

- Optional Super-Motion support (triple and double frame rates) in SD, HD and Full 3D

- Highlights Editing Functions : put clips together in seconds, preset speed per clip, adjust speed at will during playback, cut & paste functions

- Video and audio dissolves option available

NANO REMOTE CONTROLLER

- Dedicated controller with jog wheel, T-bar and lCD screen for Sportlight operations with XTnano

MECHANICAL SPECIFICATIONS

- 4RU 19-inch Enclosure

- 4RU - Size (HxDxw): 177 x 692 x 445 mm/7” x 27.2” x 17.5” weight: 31 kg (68.2 lbs) (± 5% depending of the number of disks)



PSU

- Fully redundant power supply (hot swap)
