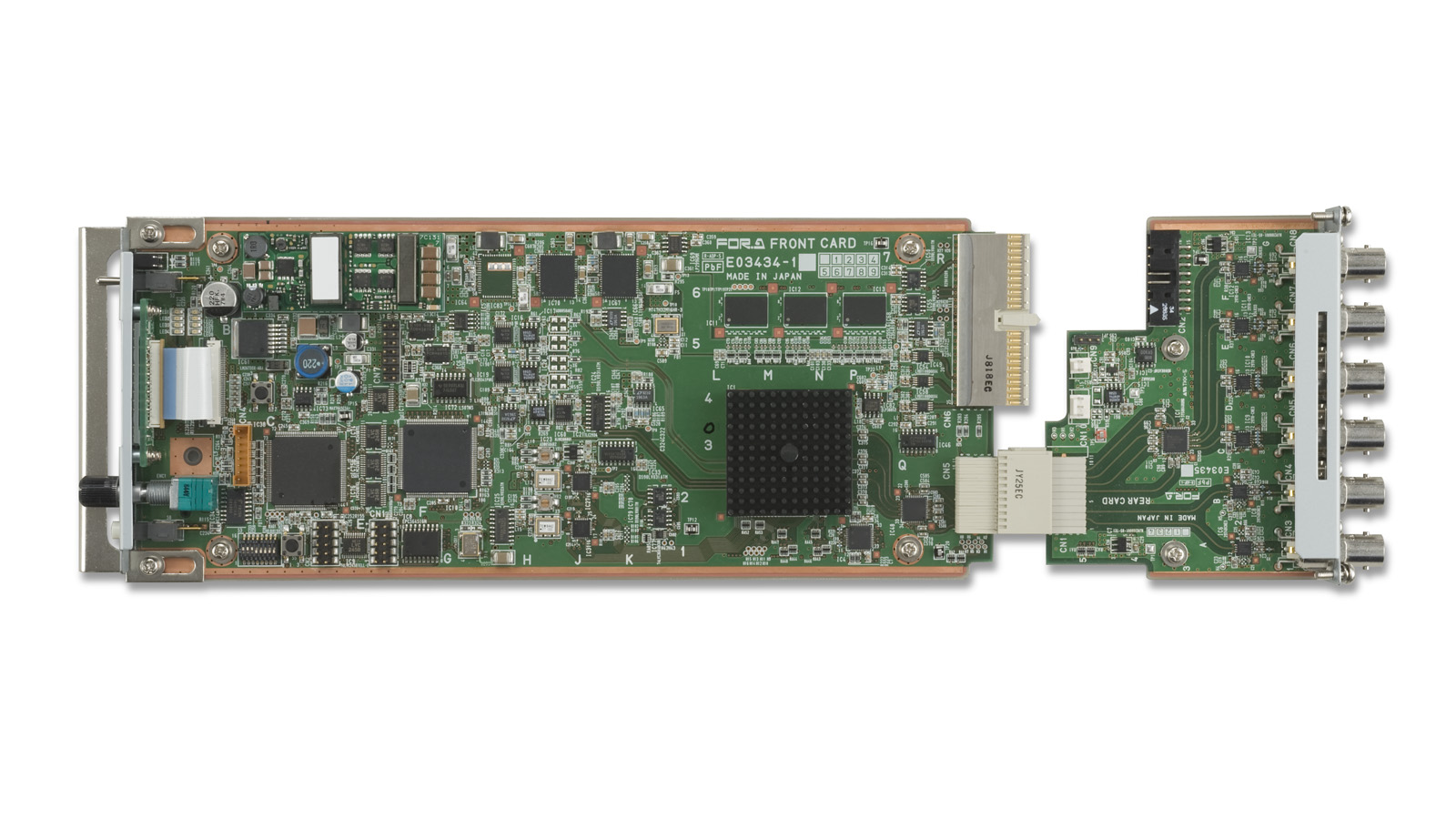

HD/SD Digital Color Corrector UFM-30DCC

Modular-type HD/SD-supported color corrector that can be mounted on a UFM frame. The lineup includes multiple model choices to meet user applications. With a device design that anticipates the next-generation signal specification 3 Gbps, the line enables continued device usage during transition to the 1080/60p, 1080/59.94p and 1080/50p formats.

UFM-30DCC

• HD/SD Single channel color corrector
• HD/SD-SDI 2 inputs (selectable), 2 outputs
• DCC-OUA control or DCC-NETOU or Web browser control selectable
• Varied color correction (Balanced, Differential and Sepia modes)
• Gamma adjustment and clip function
• Complete ANC data pass-through

UFM-30DCC + UFM-3DCC2C

• HD/SD dual channel color corrector
• Operation mode selectable
  Single channel mode
  Dual channel mode (2-channel system, individual setting)
  Link mode (2-channel system, a setting)
• Varied color correction mode
• Gamma adjustment and clip function
• Complete ANC data pass-through



See more details at

http://www.mediafire.com/download/5hu759168689r1l/ufm30dcc_c.pdf

http://www.mediafire.com/download/8w75ibnaecpf787/UFM30DCC-E-E3R2.pdf
