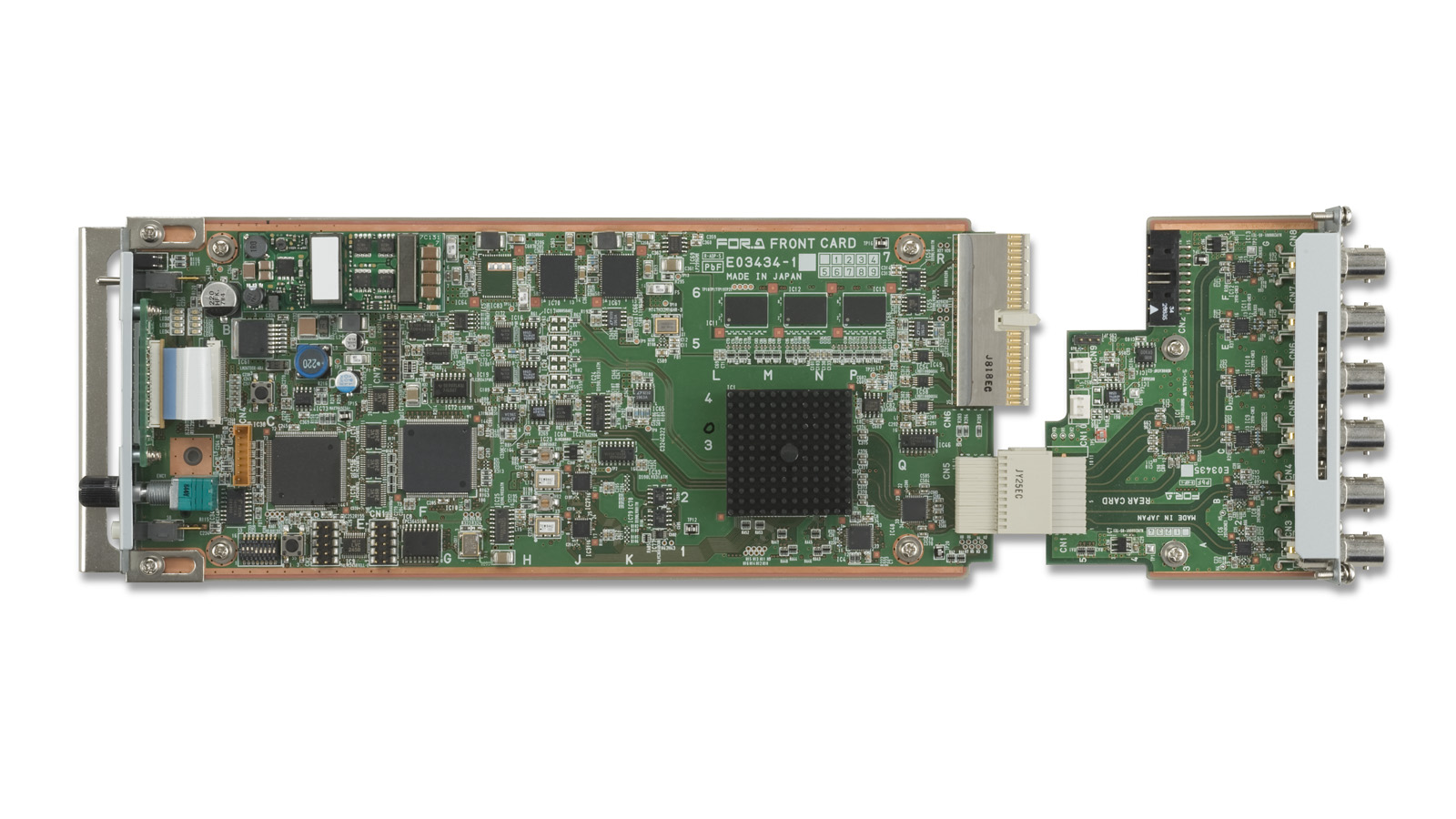

HD/SD Frame Synchronizer
UFM-30FS/30FS-R/30FS-DA
Modular-type HD/SD-supported frame synchronizer that can be equipped to UFM frame. The lineup includes multiple model choices to meet user applications. With a device design that anticipates the next-generation signal specification 3Gbps, the line enables continued device usage during transition to the 1080/60p, 1080/59.94p and 1080/50p formats.
UFM-30FS (Standard Model)
HD/SD SDI 2-Input/4-Output (manual or auto input switching)
Six HD/SD Standards: 1080/59.94i, 50i, 720/59.94p, 50p, 525/60 and 625/50 (standard support)
Additional 12 HD Standards support (optional support)
Three Sync mode: Frame, Line and Input
Proc Amp
Video Clip
Video Delay Adjust (up to 10 frames)
16-channel Embedded Audio support (asynchronous audio available for HD-SDI)
16-channel Audio SRC (Sample Rate Converter)
Audio Delay Adjust for each channel (up to 1000ms)
Audio Channel Remapping
H/V ancillary data pass-through (source-synchronous input only)
Freeze function
UFM-30FS-R (Relay Bypass mount model)
HD/SD SDI 2-Input/3-Output (manual or auto input switching)
Relay bypass function
UFM-30FS-DA (Audio Embedder / De-embedder mount model)
HD/SD SDI 1-input/1-output
AES/EBU 4-Input (8-channel) or AES/EBU 4-Output (8-channel) selectable
If AES/EBU 4-Input selected: 16 channels to be re-embedded are selected from 24 channels including 8 channels of AES/EBU and 16 channels of SDI embedded audio.
If AES/EBU 4-Input selected: 8 channels for AES/EBU outputs are selected from 16 channels of SDI embedded audio.
