With its lightweight, compact design, the VTW-330HS is an extremely portable HD/SD-supporting character generator perfect for relay applications. The software offers a rich array of drawing functions, more than 260 transition functions, template control, general-purpose file interface and more. All the functions you need are packed into an extremely compact case. With its excellent cost-performance, the VTW-330HS makes CG production affordable for all.
Major Features
-
1U size compact design excellent for relay applications. The vibration-resistant case makes it perfect for portable and on-board applications.
-
More than 260 transition functions come standard, including roll, crawl, fade in, fade out, slide and wipe.
-
Video input: equipped with video and key input terminals, enabling capture of HD/SD-SDI video.
-
Video output: equipped with program and preview output, allowing independent video/key output of each.
Input/Transmission Software
Input function:
-
Equipped with various decorative functions and production-related functions: supports entry of CGs from a script and input and flow following a template. During footage production, can import image data from general graphics software like Adobe Photoshop. All types of decorations can be added to imported data moreover with input software.
-
Easy selection of texts transmission effects by menu: easy operation, just select from a decorations pallet. Multi-layer decorations also possible by changing parameters and combining multiple decorative effects.
-
Varied decoration functions you choose with one action: just select from a decorations pallet. Multi-layer decorations also possible by changing parameters and combining decorative effects.
-
Standard auto-preview function: this lets you instantly check the input texts image on an actual TV monitor. Now it is possible to produce programming while you check CGs color and character position among other factors that are hard to tell with a PC monitor.
-
Import various image files: allows import of general-use image files.
-
Reads text and CSV files: supports text input and flow by saving texts form to a template. Importing text data or CSV files from outside sources lets you create CGs following a template.
Transmission function:
-
Transmission operation with thumbnail or list display: thumbnail or list display lets you confirm on-air or next texts while transmitting them. This application is well suited for texts checking and instant selection.
-
Standard capture function: this lets you capture the picture from the input line. Captured pictures are registered as texts to a pool folder and can be easily added to programming by drag and drop.
-
Standard simple schedule function: this weekly scheduling function, which comes standard, lets you specify programming to be transmitted on a certain day of the week or a specific date. This gives you easy automatic transmission of programming according to an operating program.
Input/Output GUI
Employs a simple, intuitive user interface integrating the input screen with the output screen.

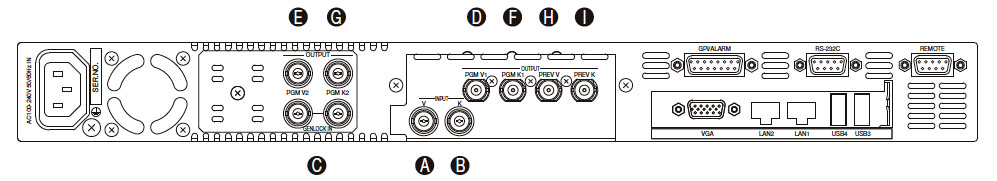

Input/Output
Input |
A. Video IN |
Video input for capture of still images |
B. Key IN |
Key input for capture of still images |
C. Genlock IN |
Reference input for BB or Tri-level sync |
Output |
D. PGM V1 OUT |
PGM video output 1 |
E. PGM V2 OUT |
PGM video output 2 |
F. PGM K1 OUT |
PGM key output 1 |
G. PGM K2 OUT |
PGM key output 2 |
H. PREV V OUT |
Preview video output |
I. PREV K OUT |
Preview key output |
