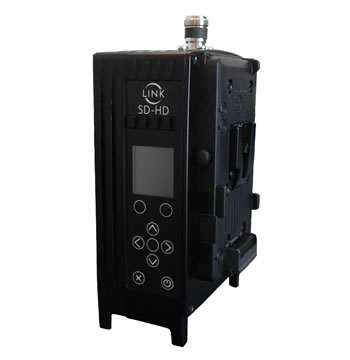

L1500 Wireless SD/HD Transmitter

The L1500 is the most powerful and flexible wireless camera transmitter from Link Research. HD and SD transmission from the same unit.



• User-swappable RF modules covering 1 to 8.1GHz.



• Link’s LMS-T modulation scheme for unrivalled wireless performance.



• Link’s real time pre-distortion (LDPD) RF units for unrivalled adjacent channel performance



• Phantom power from the RF unit to power external booster amplifier



• Camera control options for Sony, Thomson, Ikegami and other cameras.



• Standard IDX, PAG or Anton Bauer camera and battery mounts can be specified.



The modular design of this transmitter allows you to start from a standard SD transmitter and add camera control and HD capability as and when you require. It has unmatched RF flexibility with the ability to change RF modules in the field as needed to cover a huge frequency range from 1GHz to more than 8GHz.

Features



• DVB-T: QPSK, 16 QAM, 64 QAM, 6,7 & 8 MHz



• LMS-T: QPSK, 16QAM, 10 & 20 MHz



• RF Modules from 1 to 8.1GHz



• SD Video Encoding: 4:2:0 and 4:2:2



• ASI Input and Output



• ASI Remux



• 4 Audio Channels, Line or Mic with Phantom Power



• Ultra Low Delay
